Patny Gratings

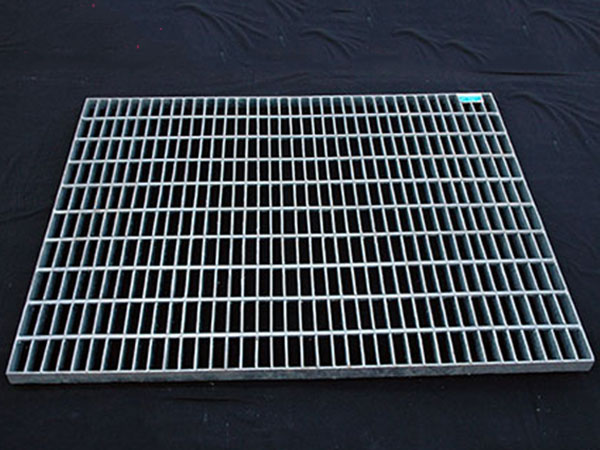

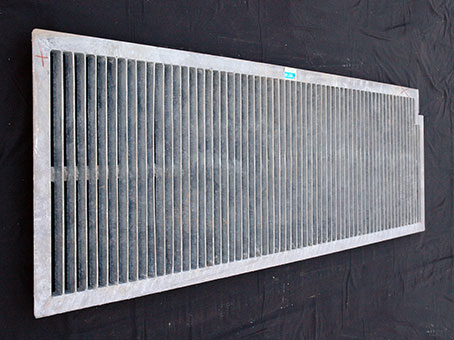

An open grid assembly of metal bars, in which the bearing bars, running in one direction, are spaced by rigid attachment to cross bars running perpendicular to them or by bent connection bars extending between them.
Load carrying bar made from steel strip, or slit sheet or from rolled or extruded aluminum and extending in the direction of the grating span.
The connecting bars, made from steel strip, slit sheet or rolled

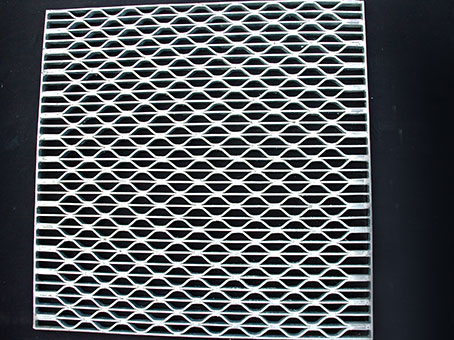

bars, or from rolled or rolled or extruded aluminum, which extend across the bearing bars, usually perpendicular to them. They may be bent into a corrugated or sinuous pattern, where they intersect the bearing bars which are welded to them.
| Bearing Bars |
Cross Bars |
Type of Raw Material |
Sizes |
Finish |
25x6 mm
32x5 mm
32x6 mm
40x6 mm
50x6 mm
etc,. |
10 mm Sq
12mm sq. 25 mm X 6 mm
32x5 mm
32x6 mm
40x6 mm
50x6 mm
etc,. |
Mild Steel
&
Alumineium |
As per Customer
Requirement
|
Hot Dip Galvanized
Powder Coated
Enamet Painted |
|
