Patny Ladder Type Cable Trays (LTCT)
PATNY Ladder Type Cable Trays (LTCT) provides maximum ventilation and load carrying strength Used in applications with intermediate support with long spans, for Power & Control Cables.
• Mild Steel Conforming to I.S. 1079; 1994 / I.S. 513; 1994
• Aluminium Conforming to I.S. 737; 1986 &
• Stainless Steel Conforming to grade 304 & 316
| Tray width (W) |
Runner
Height (H) |
Runner Collar (C) |
Rung Size |
Rungs Interval |
Rung Slot Size |
Thickness
(T) |
Tray Length
(L) |
Finish |
150 mm
or
1000 mm |
50 mm
or
120 mm |
15 mm
or
45 mm |
35x15 mm
40x20 mm
50x20 mm |
250 mm
or
300 mm |
20x10 mm Width Spacing 10 mm/15 mm gap |
1.6 mm
to
3.0 mm |
2500 mm
or
3000 mm
|
Hot Dip Galvanized
Powder Coated
Enamet Painted |
Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers consultants
Patny Ladder Type Cable Trays
Equal C Type Welded |
New Bolted Type |
Z Type |

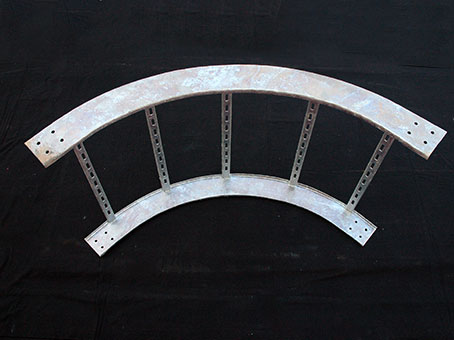

90 Horizontal Elbow
|

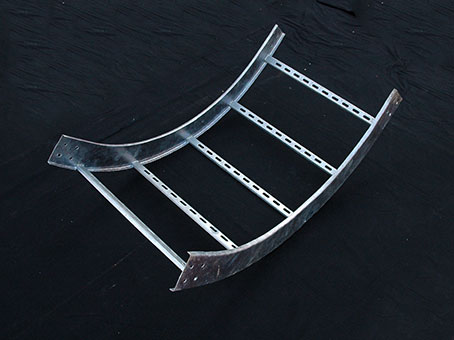

90 Vertical Outside Elbow |

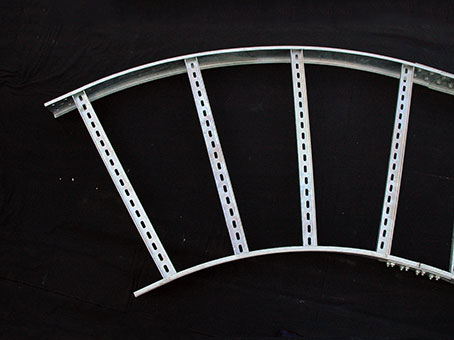

90 Vertical Inside Elbow |

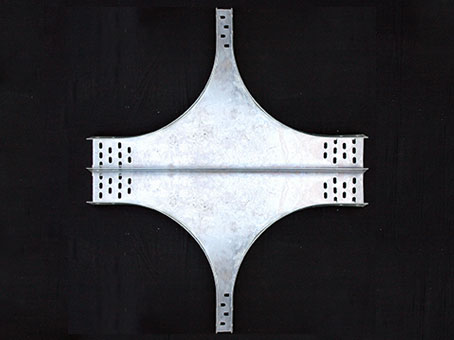

Horizontal Cross |
| |
|
|
|

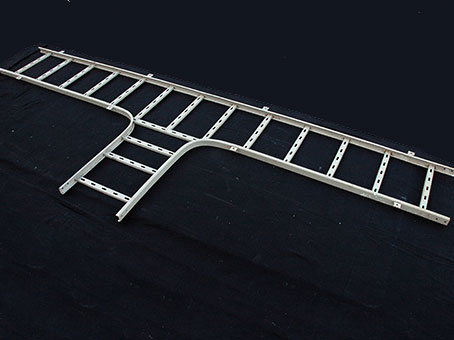

Horizontal Tee |

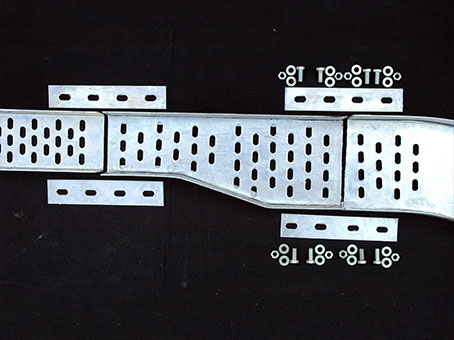

Equal Reducer |

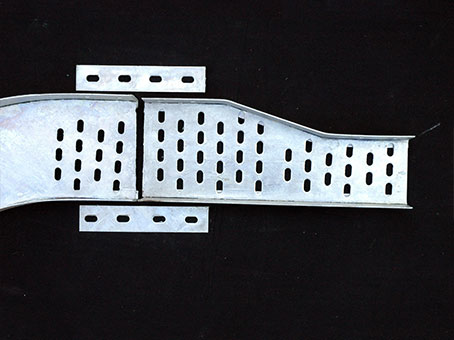

Left Hand Reducer |
Right Hand Reducer |
| Radius |
Types of Bends |
Degrees |
300/450/600/1000 mm
or
as per the choice of customers |
Horizontal, Vertical (Inside/Outside) Tees (Equal & Un-equal), Cross, Reducers |
30, 45, 60, 90 for Bends |
|
