PATNY Perforated Cable Trays (PCT)
We PATNY SYSTEMS PVT. LTD. are used for Instrumentation, Control as well as Power Cables. This Type of Cable Trays provide ventilation and at the same time protecting the Cables.
PCTs are fabricated out of
- Mild Steel conforming to I.S. 1079; 1994 /I.S. 513;1994
- Aluminium confirming to I.S 737; 1986 &
- Stainless Steel conforming to grade 304 & 316
| Perforation Dettails | Tray Width (W) | Tray Height (H) | Tray Collar (C) | Tray Length (L) | Thickness (T) | Types of Raw Material | Finish |
|---|---|---|---|---|---|---|---|
| Slot size: 20x10mm. Width wise: 10min gap. Length wise: 20.30&40MM c/c gap |
50mm to 1000mm | 20mm to 100mm | 15mm to 25mm | 2500mm to 3000mm | 1.6mm to 3.0mm | Mild stool (MS) or Aluminum (Al) or Stainless steel (S.S) |
Hot dip Galvanozed Galvanized Sheet(Gl) Power Coated |
Note: If other than the above-mentioned widths are required the trays can be fabricated as per the specifications by the customers / customers consultants.

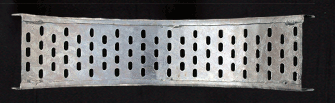

Patny Perforated Cable
Collar Type
‘U’ Type
Perforated Cable Trays ( PCT) Accessories.

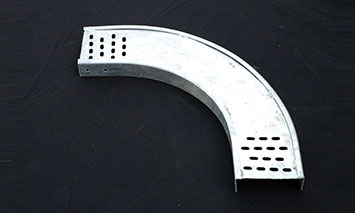

90 Horizontal Elbow Left/right

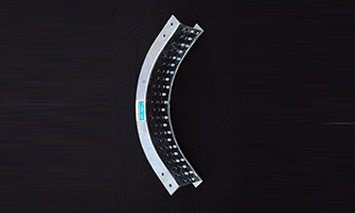

90 Vertical Outside Elbow

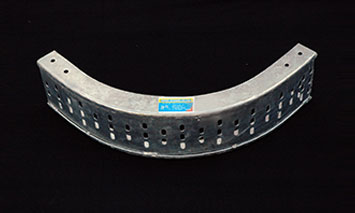

90 Vertical Inside Elbow
Horizontal Cross
| Radius | Types of Bends | Degrees |
| 300/450/600/1000 mm or as per the choice of customers |
Horizontal, Vertical (Inside/Outside) Tees (Equal & Un-equal), Cross, Reducers | 30, 45, 60, 90 for Bends |
